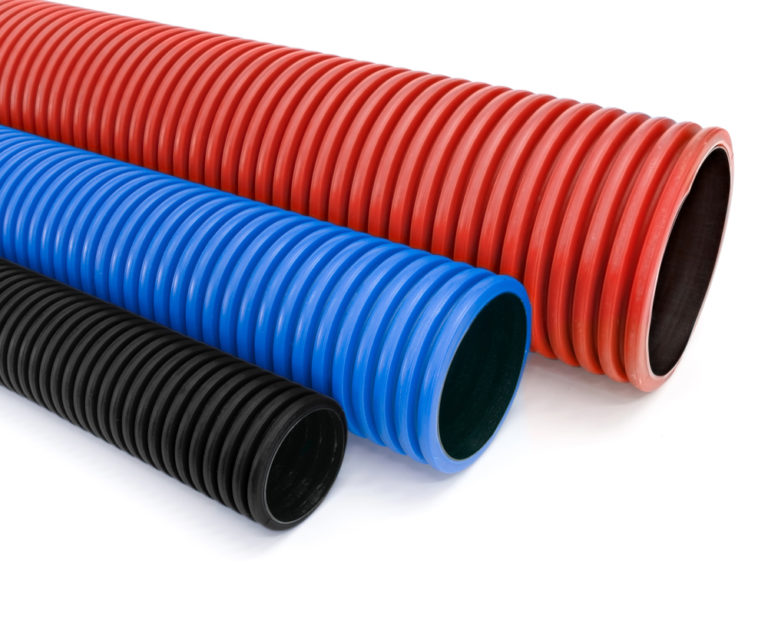

Double Wall Corrugated Pipe Machine-YXDWC160-HDPE/PP
Double Wall Corrugated Pipe Machinery
The Feature of HDPE Double Wall Corrugated Pipe Extrusion Line:

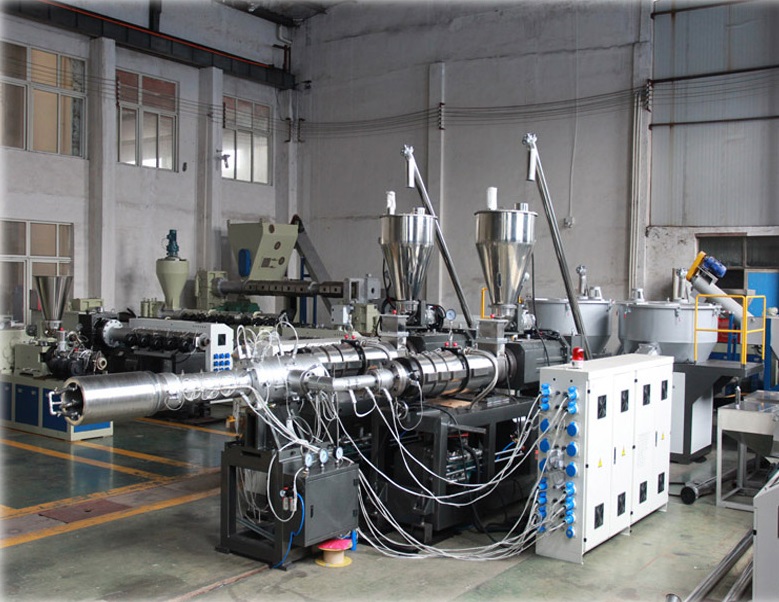

This corrugated pipe extrusion line mainly contains extruder, corrugator forming machine, mold blocks, cooling equipment, counting machine and winding machine. It can continuously produce many kinds of diameter Double wall corrugated pipes. use for Double Wall Corrugated Pipe Machine
Extruder:It has high speed high efficiency screw, hard gear surface, FUJI or ABB invertor. This structure assures the material evenly heating, good plasticization and the extruding speed and efficiency.
Corrugator: Close structure. Mold blocks through the gear transmission. Mold plate has water flowing to get cooling efficiency. The pipe cooling type is wind. This structure ensures high speed production and cooling. It can produce inner and outer layer smooth and corrugation uniformity pipe one time matching the corresponding molds.
Mold block: The design of structure is reasonable; wind cooling and replacement of the module is convenient and reliable.
Winder: Moment motor, Double/double station winder…
Main Parameters of YXDWC160-HDPE/PP Double Wall Corrugated Pipe Machine:
| Diameter Scope （Outside Dia.） | OD40-110 mm | OD 50-160mm | OD75-250mm |
| Main Extruder | SJ-55/SJ-65 | SJ-65/SJ-75 | SJ-65/SJ-90 |
| L/D | 30:1 | 30:1 | 30:1 |
| Output kg/h (kg/h) | 140-200 | 160-240 | 200-350 |
| Main Motor (KW) | 18.5/22 | 22/55 | 37/75 |
| Corrugator Power (KW) | 4 | 4 | 5.5 |
| Mould Block Pairs | 58 | 50 | 48 |
| Cooling Type | Water and air cooling | ||
| Line Speed (m/min) | 2-6 | 2-6 | 2-4 |
| Counting Type | Sensing counting | ||
| Winding Type | Automatic/Manual | ||
