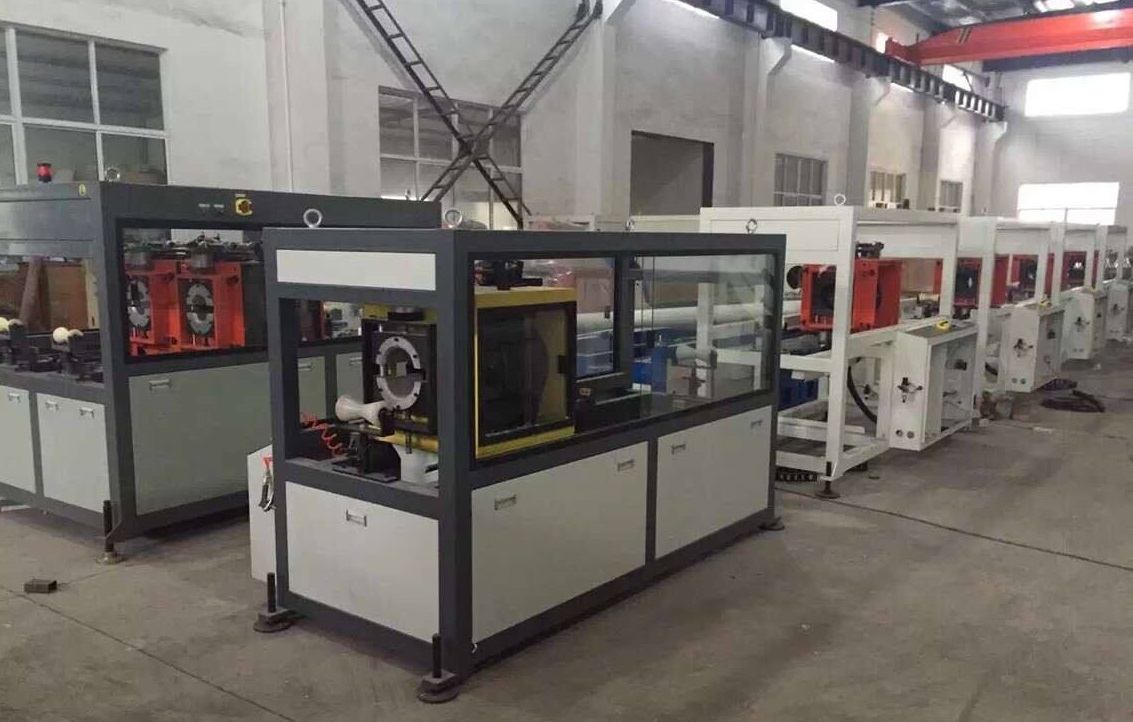

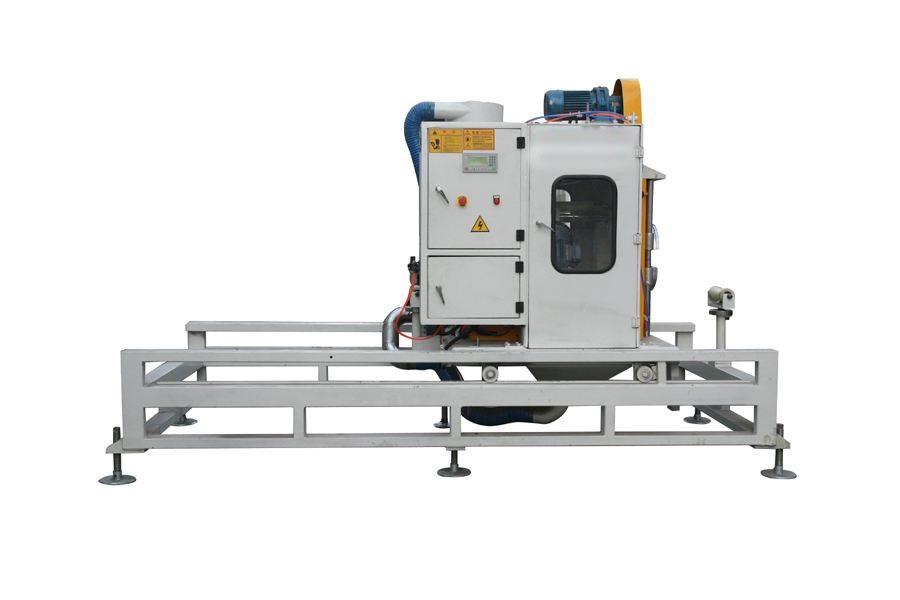

Plastic Pipe Cutting Machine
Plastic Pipe Cutting Machine Introduction
1)Plastic Pipe Cutting Machine mainly used in cutting plastic pipes like PVC/UPVC pipes, HDPE/PP/PPR pipes
2)The cutting of the products do not produce chips, and cut sections smoothing products,thus saving products, raw materials, but also conducive to products with the corresponding pipes connector.
3)The cutting of the products at the line can be carried out simulaneously at any time,you can cut at any time of sampling a section of pipe when not on the production line
4)Cutting the process smooth.
5)High automation, high cutting quantity and appearance is beautiful
Pipe Cutting Machinery Main technical parameter:
| No. | QG160 | QG250 | QG315 | QG400 | QG500 | QG630 | QG1200 |
| Max. Cutting Dia.(mm) | 160 | 250 | 315 | 400 | 500 | 630 | 1200 |
| Min. Cutting Dia.(mm) | 63 | 90 | 110 | 160 | 160 | 160 | 200 |
| Saw Dia.(mm) | 200 | 220 | 250 | 320 | 320 | 320 | 320 |
| Power (kw) | 2.2 | 3 | 3 | 4 | 4 | 5.5 | 7.5 |
| Cutting Range(mm) | 1200 | 1200 | 1200 | 1200 | 1200 | 1500 | 1500 |
| Max. PCS/ MIN | 2 | 2 | 1.5 | 1.5 | 1 | 0.8 | 0.5 |
