HDPE Water/Gas/Electric Pipe Extrusion Line

HDPE Pipe Extrusion Line Working Process ：

Raw Material—Mixing—Auto feeder and drier—Single screw extruder—Co-extruder—Mould Calibrator—Vacuum forming table—Water cooling tank—Haul-off machine—Cutting machine— Stacker(winding machine).

The Introduction of HDPE Water/Gas/Electric Pipe Machine :

The pe pipe production line from charging to stacking shall be controlled automatically by PLC, having high reliability, easy operation and maintenance. With this extrusion line, a layer or multi-layer high strength wire such as steel wire, glass fibre and polyester fibre may be winded do existing pure PE pipe to increase the pipe working pressure to 4MPA.

The Feature of HDPE Pipe  Line :

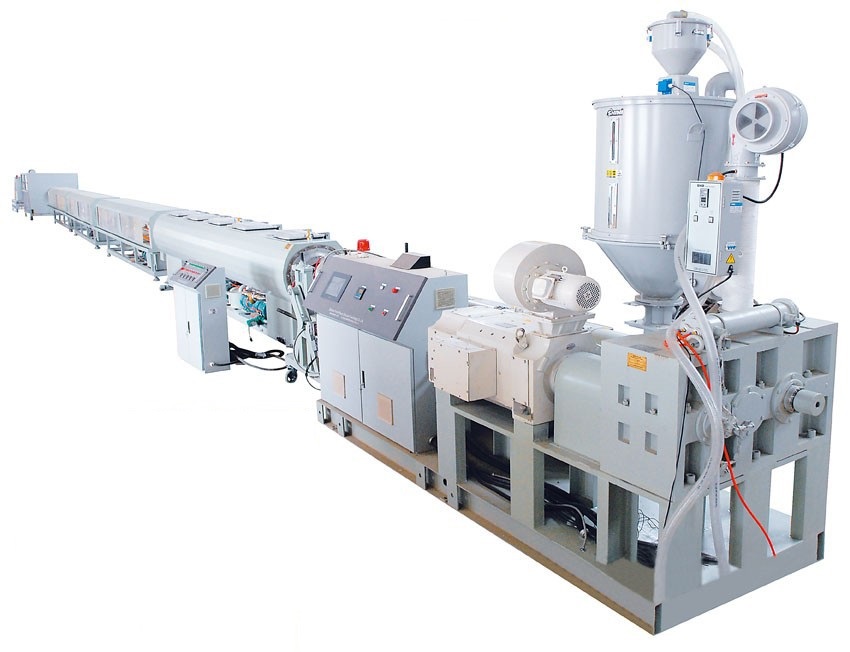

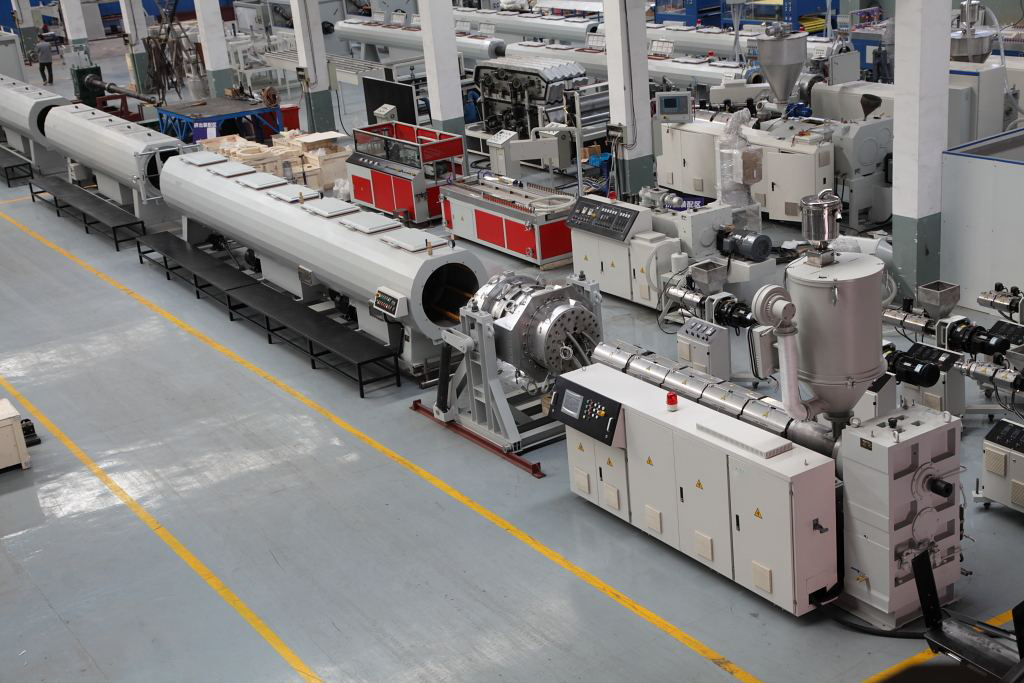

HDPE/MDPE pipe extrusion line mainly includes single screw extruder, molds, vacuum calibrating water tank, spray water cooling tank, haul-off machine, cutting machine and overturning bracket.

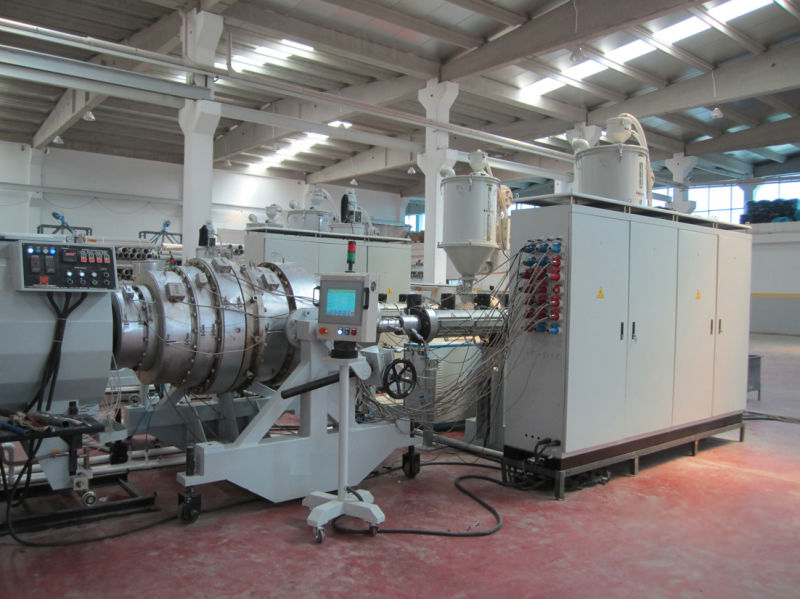

Extruder:  HDPE/MDPE pipe extrusion line adopts high speed and efficiency of single screw extruder.The screw has barrier unit, special material mixing components and new style of barrel grooves.

Color Line Extruder: It is extruded by single screw extruder SJ30 through the composited extrusion die.

Die Head: The material of the die head is high quality 40Cr. It is the most advanced spiral or lattice die head in the world, which assures stable extrusion in the production process.
Vacuum Calibrating Tank: The body is made of high hardness and good quality stainless steel board. It has advanced water circulation and high pressure cooling system, vacuum adjusting equipment and accurate water temperature and water level automatic controlling system.

Spray Cooling Tank: The body is made of stainless steel and the ductcoat is transparent soft PVC curtain. Stainless steel float adjusts water level and electricity controls water temperature.

Haul-off Machinery: We can offer two tracks, three tracks, four tracks, five tracks and six tracks Haul-offmachine according to different diameter , and wall thickness of the pipe. It adopts frequency conversion. Every traction frame transfers with chain which ensures every track moving simultaneously.

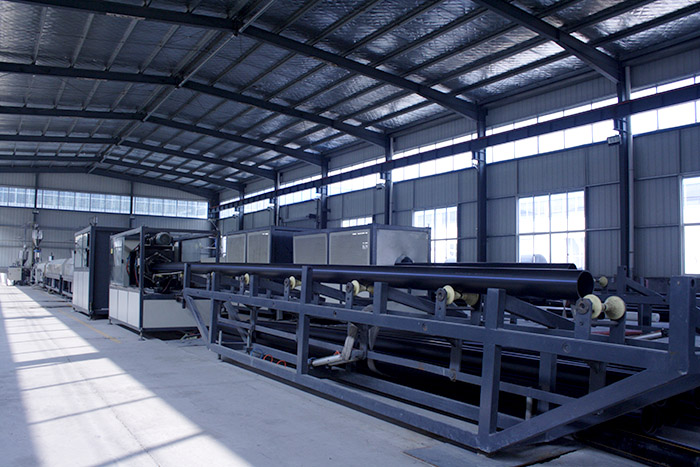

Cutting Machinery: Automatic dustless cutting machine. Smooth cutting section, synchronous frequency conversion drive, high accuracy and low noise. Large diameter pipe uses full- automatic planetary cutting machine. It is synchronization with the whole production line.

Control System: We can offer SIEMENS PLC controlling system which is intelligent controlling system. Also we can offer ordinary controlling system which use SIEMENS electrical parts, Omron temperature controller. Intelligent control makes the operation simpler.

Main Parameters of HDPE Water /Gas/Electric Pipe Extrusion Line:
